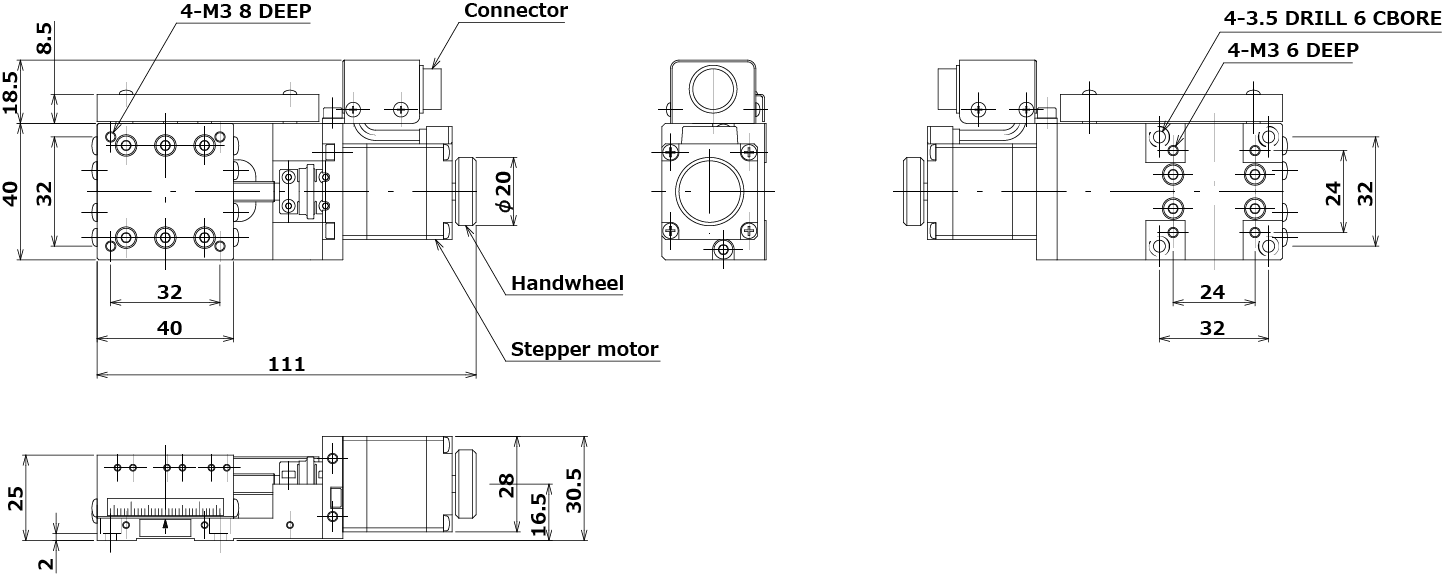

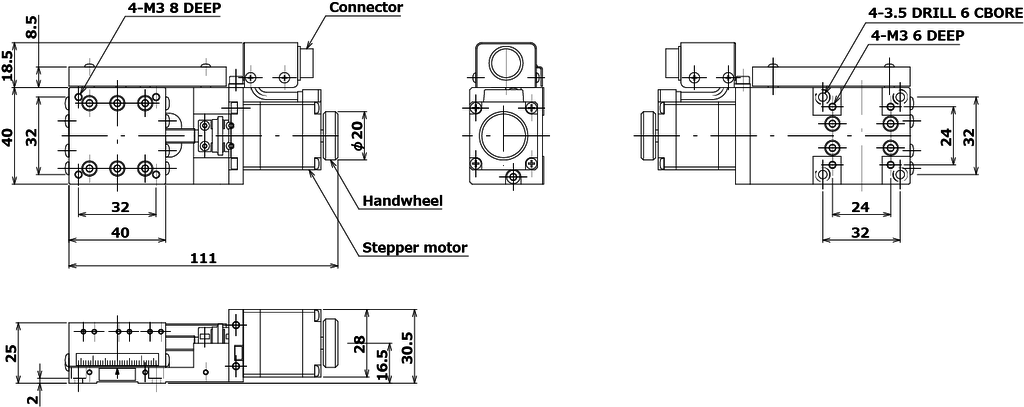

Description
| Product category | High-grade X stages |
| Features | Highly precise and rigid motorized stage with HG-VCR method. Specification types of precision screw, ball screw or ball screw with scales are available. Widely used for precise positioning applications for cameras, sensors and workpieces. |
| Product No. (Standard type) | ALS-4011-G0M |
| Product No. (Symmetric type) | ALS-4011-G0M-R |
| Direction of travel | X axis one direction |
| Travel | ±7.5mm |
| Table size | 40mm×40mm |
| Motor | Equivalent to PK523HPB (5-wire type pentagonal connection 0.75A/phase) |
| Resolution | 0.001mm |
| Screw type | Precision screw |
| Lead screw | 0.5mm |
| Guiding method | HG-VCR (V-groove & cross roller) |
| Travel accuracy HV | Straightness (Horizontal & Vertical) 0.002mm |
| Travel accuracy YP | Yawing 20sec, Pitching 30sec |
| Positioning accuracy | 0.01mm |
| Repeatability | ±0.0005mm |
| Lost motion | 0.005mm |
| Parallelism of motion | 0.02mm |
| Moment rigidity | 0.25sec/N・cm (yaw), 0.3sec/N・cm (pitch), 0.3sec/N・cm (roll) |
| Load capacity | 49N (5kgf) |
| Weight | 0.32kg |
| Maximum speed (8,000pps) | 8mm/s |
| Material/Surface treatment | Aluminum alloy/Black alumite |
| HOME sensor | Normally closed contact (break contact, B contact) operation, photo sensor |
| LIMIT sensor | Normally closed contact (break contact, B contact) operation, photo sensor |
| Standard accessories | Mounting screw: M3 hexagon socket head cap screws (4 pcs) |
| Compatible cable | ACB-NV-D3, ACB-STM-D3 |
