Description
| Product category | High-grade rotary stages |

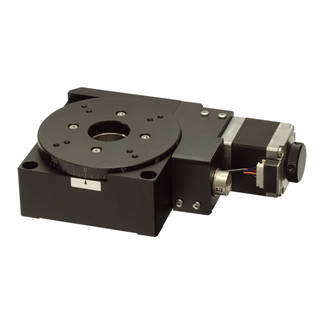

| Features | Motorized rotary (rotation) stage using ball bearing for guide. Stage is equipped with through hole at the center. Widely used for precise positioning applications for cameras, sensors and workpieces. |
| Product No. | ARS-7036-GM |
| Direction of travel | Rotation |
| Travel | 360° |
| Table size | φ70mm |
| Motor | Equivalent to PK523HPB (5-wire type pentagonal connection 0.75A/phase) |
| Guiding method | Ball bearing |
| Runout | 0.01mm |
| Deflection | 0.06mm |
| Positioning accuracy | 0.05° |
| Repeatability | ±0.003° |
| Lost motion | 0.02° |
| Parallelism of motion | 0.075mm |
| Load capacity | 39.2N (4kgf) |
| Weight | 0.7kg |
| Maximum speed (5,000pps) | 50°/s |
| Material/Surface treatment | Aluminum alloy/Black alumite |
| HOME sensor | Normally open contact (make contact, A contact) operation, photo sensor |
| LIMIT sensor | － |
| Standard accessories | Mounting screw: M4 hexagon socket head cap screws (3 pcs) |
| Compatible cable | ACB-NV-D3, ACB-STM-D3 |
