Description
| Product category | 30mm sq. small sized stages |
| Features | Motorized small sized stages adopting 20mm square 5-phase stepper motor with V-groove and cross roller. 15mm travel type is available. Widely used for precise positioning applications for cameras, sensors and workpieces. |

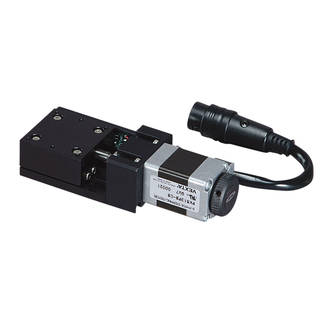

| Product No. | ALS-301-HM |
| Direction of travel | X axis one direction |
| Travel | ±7.5mm |
| Table size | 30mm×30mm |
| Motor | Equivalent to PK513PB (5-wire type pentagonal connection 0.35A/phase) |
| Lead screw | 0.5mm |
| Guiding method | V-groove & cross roller |
| Travel accuracy HV | Straightness (Horizontal & Vertical) 0.008mm |
| Positioning accuracy | 0.015mm |
| Repeatability | ±0.0005mm |
| Lost motion | 0.005mm |
| XY Perpendicularity | – |
| Load capacity | 19.6N (2kgf) |
| Weight | 0.16kg |
| Maximum speed | 8mm/s (8,000pps) |
| Material/Surface treatment | Aluminum alloy/Black alumite |
| LIMIT sensor | Normally open contact (make contact, A contact) operation, hall IC |
| Standard accessories | Mounting screw: M2 Hexagon socket head cap screws (4 pcs) |
| Compatible cable | ACB-NV-C3, ACB-STC-D3 |
