Description
| Product category | 30mm sq. small sized stages |
| Features | Motorized small sized stages adopting 20mm square 5-phase stepper motor. Allowing high accuracy using V-groove and cross roller as guide for Z lift stage, and ball bearing as guide for rotary stages. Widely used for precise positioning applications for cameras, sensors and workpieces. |

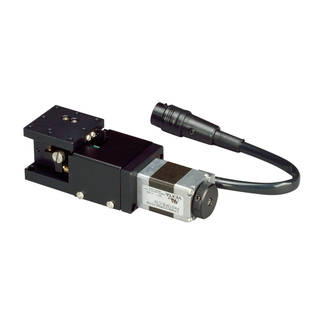

| Product No. | ALV-3005-HM |
| Direction of travel | Z axis one direction |
| Travel | 0～5mm |
| Table size | 30mm×30mm |
| Motor | Equivalent to PK513PB (5-wire type pentagonal connection 0.35A/phase) |
| Lead screw | 0.5mm |
| Guiding method | V-groove & cross roller |
| Runout | – |
| Deflection | – |
| Travel accuracy HV | Straightness (Horizontal & Vertical) 0.005mm |
| Positioning accuracy | 0.020mm |
| Repeatability | ±0.002mm |
| Lost motion | 0.005mm |
| Parallelism of motion | – |
| Load capacity | 9.8N (1kgf) |
| Weight | 0.2kg |
| Maximum speed (3,000pps) | 8mm/s |
| Material/Surface treatment | Aluminum alloy/Black alumite |
| LIMIT sensor | Normally closed contact (break contact, B contact) operation, photo sensor |
| Standard accessories | Mounting screw: M2 Hexagon socket head cap screws (3 pcs) |
| Compatible cable | ACB-NV-C3, ACB-STC-D3 |
